CST RIMFIRE RECEIVERs
CST CentriX series and ClassX Rimfire Receivers are all CNC machined from aerospace grade 6061-T6 aluminum billet to stringent tolerances and protected by hard anodize, (clear or black are available). We pride ourselves in providing 10/22* type receivers of the best fit and finish you will find on the market. Every receiver is hand deburred and polished, particularly in the critical bolt channel providing the smoothest operation found anywhere. Drop-in Design is fully compatible with factory and aftermarket stocks, barrels, trigger assemblies, bolts, barrel and other 10/22* components.
CST Rimfire Receivers feature the “Fill-The-Gap” barrel clamping system, strongest on the market and completely eliminates barrel droop regardless of the barrel dimensions. Demo Video: https://youtu.be/I1ZJmSNasEc
CST Rimfire Receivers also feature a removable cap to allow barrel cleaning from the rear, proper clearance built in for the Grand Master Trigger spring assisted magazine release, and a removable rear threaded tab to allow the addition of a rear action screw. Special stock inletting is required for the rear threaded tab. However, the ability to remove the threaded rear tab allows drop-in installation of CST Rimfire Receivers into any 10/22* stock. The rear threaded tab can be added later if desired.

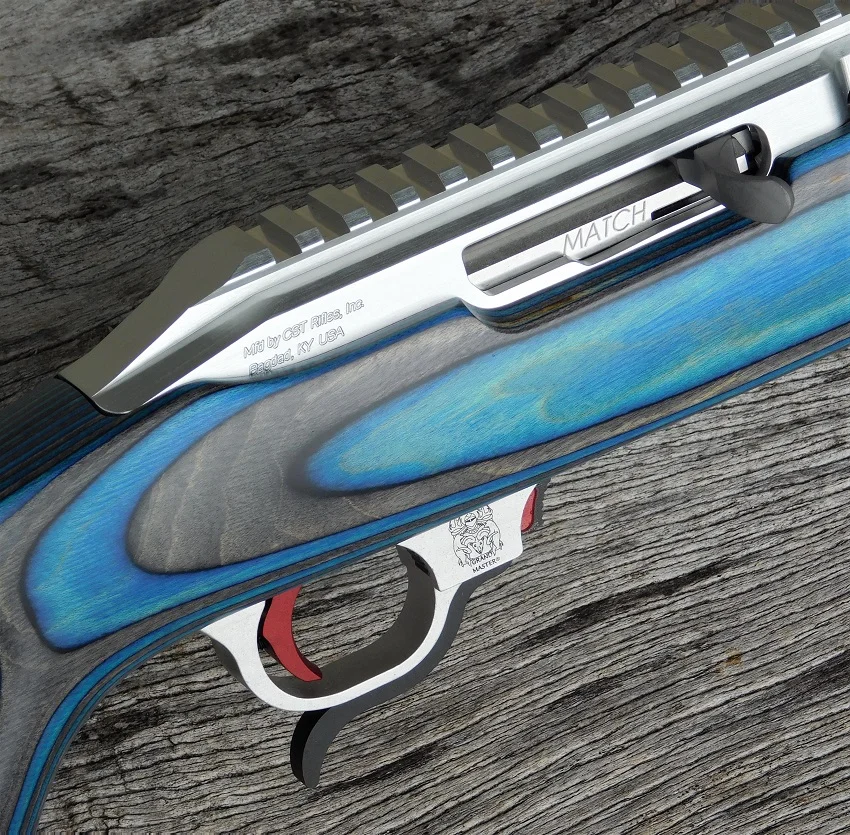

The CST CentriX series Rimfire Receiver features a reinforced rear tang built into the integral picatinny rail for extra rigidity while minimizing additional weight. Extra surfaces are created to flow into the stock for an elegant look.
Here is a testimonial aobut our CentriX-22 Receiver:
"Your 5 MOA rail along with the new barrel lock system puts your receivers at the top of the heap.
Quality machining, innovation and finish put these receivers in a class of their own".
Thanks,
Vince Heier
Heier's Custom Ruger 10/22s, LLC
Belgrade, MT
All CST Rimfire Receivers include the option of adding a Rear Threaded Tab for using a second rear action screw. Removable feature allows it to be added at any time.
To simplify installation of the rear action screw, Rear Pillar Sets are available.
CST CentriX-ELR Rimfire Receivers feature an extra rail position to the rear with a 20-MOA tapered rail.
CST ClassX-22 Rimfire Receivers, shoot X’s with the classic design! Light weight and offers lots of options, all with the precise fit and finish CST is known for.
The Threaded Rear Tab is firmly and precisely attached to the receiver using two robust dowel pins and a Socket-Head fastener. Once special bedding in the stock is completed, the Rear Tab provides a rear action screw fastened from the bottom. Short (standard) and long Rear Tabs are available for the best look in the pistol-grip curvature of the stock. To avoid any required bedding, the Rear Tab can simply be removed for a drop-in installation of the receiver into the stock, and added later at any time.
The procedure to install the Threaded Rear Tab is found here.
How do they shoot?
“I just wanted to send a email saying thank you. Thank you for making a top quality product, without it I wouldn't have been able to accomplish a ky state unlimited championship. Your action and tuner along with John Langley putting it together for me lead me to a great win this year. I still have a lot to accomplish in the benchrest game but this is a great start. Once again thank you.” Keith Northcutt, December 2020
"Just wanted to send my thanks for the support I got from you this year. As you can see from the picture, I won both the Kentucky and National ABRA No.1 ranking this year for autoloading .22 Benchrest rifles. I used three different CST actions of your manufacture and all performed flawlessly. I enjoyed talking to you early in the year concerning design. I believe your combination of stiffness and rear attachment is the best in the business. Thanks!"
Arthur Shaffer, December 2016
MEDIA / REVIEWS:
Special Thanks to Mr. Revolver Guy, great spot on his YouTube channel:
https://www.youtube.com/watch?v=hUkSLZ3m31g
GREAT READ: https://www.industryoutsider.com/cst-centrix-22-semi-auto-receiver/
IMPORTANT FFL INFORMATION:
Upon Purchase, please forward contact information of a Federal Firearm Licensee (FFL) in your area. Be advised, the website will process your order regardless of the ship-to address entered, however this item can only be shipped to an FFL holder in your area. The FFL Holder is required to forward a signed and dated copy of their license via email before shipping can take place. Our email is: cstmtech1022@gmail.com
“Ruger” and “10/22” are registered trademarks of Sturm, Ruger & Co., Inc. Custom Shooting Technologies, Inc. is not associated with Sturm, Ruger & Co., Inc.
